Feature category: 1. Settlement, economic and cultural features
Feature type:
(with ordinal number)
1.04 SHAFT MOUTH, GALLERY MOUTH (ÚSTÍ ŠACHTY, ŠTOLY)
Feature type code: aa010
Feature definition:

Shaft mouth - a surface object at the point where the shaft opens to the surface.
Gallery mouth  - a modified place on the slope in front of the mouth of the gallery (usually ending with a portal).
Geometric determination of the feature: point
Positional accuracy: mp = 2,0 m
Geometric data source: aerial survey photos, orthophoto, field recognition
Descriptive data source:
ČGS, field recognition, Geonames
A t t r i b u t e s :
Attribute name Data type Attribute subject Attribute values Code list
STAVOB_K
STAVOB_P
VARCHAR2(3)
VARCHAR2(50)
feature use state C_STAVOBJEKTU
DRUHTEZ_K
DRUHTEZ_P
VARCHAR2(3)
VARCHAR2(50)
the type of mined material C_DRUHTEZBY
JMENO VARCHAR2(100) name transferred from Geonames
FID_ZBG VARCHAR2(40) unique feature identifier in ZABAGED®.
S i z e   r e s t r i c t i o n s :
without restriction
E x a m p l e s :
Příklad

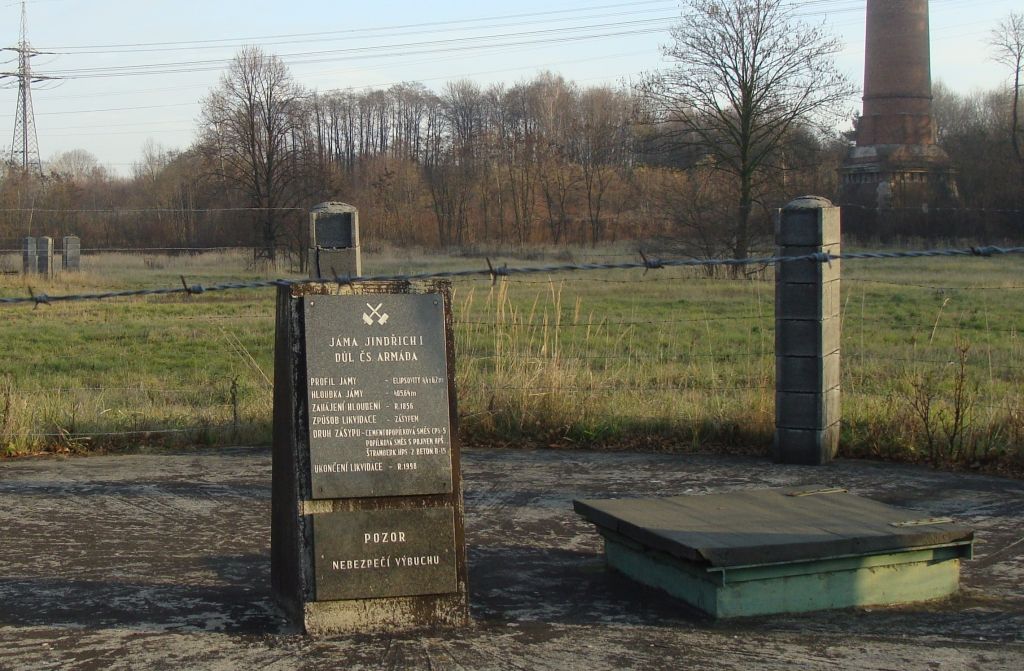

Feature illustration - feature out of order (code 027); photo: ZÚ archives
Příklad

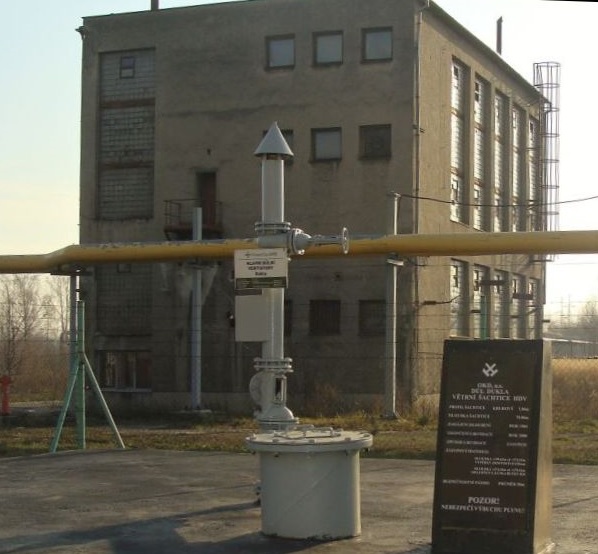

Feature illustration - feature out of order (code 027); photo: ZÚ archives
Příklad
Feature illustration - feature out of order (code 027); photo: ZÚ archives
Příklad
Feature illustration - feature out of order (code 027); photo: ZÚ archives
F e a t u r e   h i s t o r y :
2016-04-01: JMENO - attribute data type changed (VARCHAR2(80) -> VARCHAR2(100))
2016-04-01: C_DRUHTEZBY - values in the code list changed
2016-04-01: 13 (brick clay) - code description in the code list changed C_DRUHTEZBY (13 (clay) -> 13 (brick clay))
2016-04-01: 27 (ores, radioactive raw materials) - code description in the code list changed C_DRUHTEZBY (27 (ores) -> 27 (ores, radioactive raw materials))
2016-04-01: 37 (ceramic materials) - value added to the code list C_DRUHTEZBY
2016-04-01: 38 (limestone, dolomite) - value added to the code list C_DRUHTEZBY
2016-04-01: 39 (other non-metal ores) - value added to the code list C_DRUHTEZBY
Extended web version updated to : 20.05.2022
