| Feature category: | 1. Settlement, economic and cultural features |
| Feature type: (with ordinal number) |
1.23 WALL (ZEĎ) |
| Feature type code: | al260 |
|
Feature definition: A separate building made of solid material (concrete, brick, stone, etc.). It includes cemetery walls, retaining walls, massive walls, which act as a fence, and noise barriers along roads. |
| Geometric determination of the feature: | line |
| Positional accuracy: | mp = 1,0 m |
| Geometric data source: | aerial survey photos, orthophoto, field recognition |
| Descriptive data source: | field recognition, ŘSD ČR, Geonames |
| A t t r i b u t e s : |
| Attribute name | Data type | Attribute subject | Attribute values | Code list |
| TYPZED_K
TYPZED_P |
VARCHAR2(3)
VARCHAR2(30) |
wall type (attribute values will be filled in from external sources in 2021) |
C_TYP_ZDI | |
| JMENO | VARCHAR2(100) | name transferred from Geonames | ||
| FID_ZBG | VARCHAR2(40) | unique feature identifier in ZABAGED® |
| S i z e r e s t r i c t i o n s : |
length of other wall (see code list C_TYP_ZDI) ≥ 50 m
length of retaining wall and wall of a waterworks without size restrictions
length of noise barrier ≥ 3 m
height ≥ 2 m
total length of walls with the possibility of line interruption
|

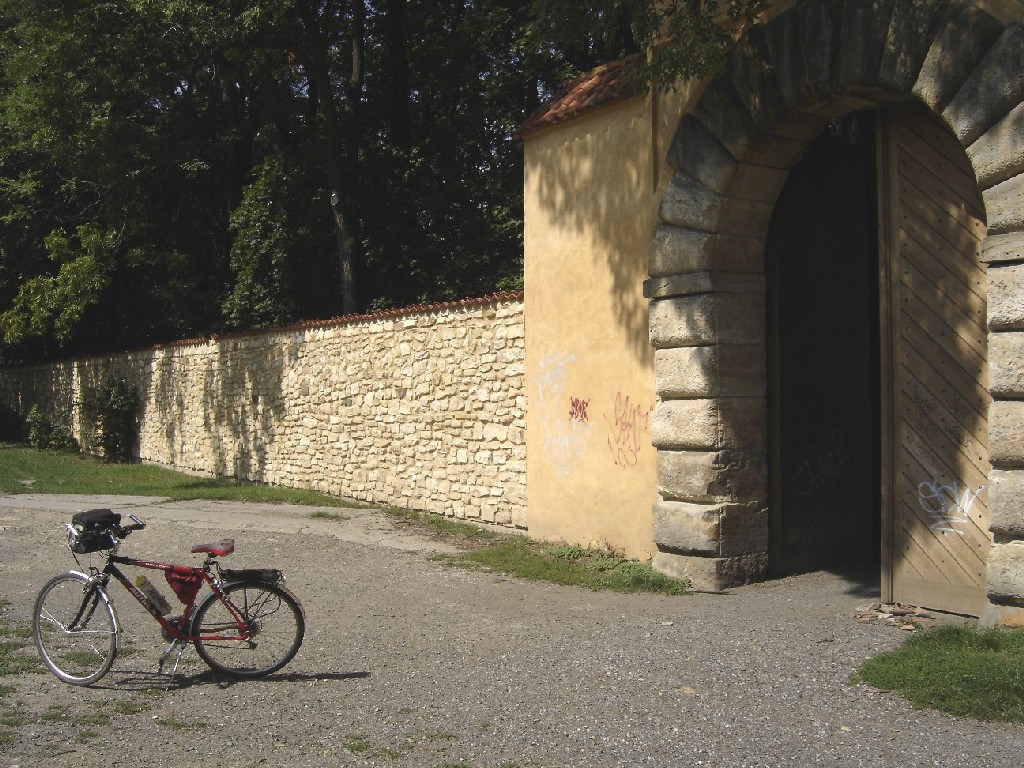

| E x a m p l e s : |
|
| F e a t u r e h i s t o r y : |
|
2022-01-01: ZOT (retaining wall over the terrain) - value canceled in code list C_TYP_ZDI 2020-03-01: TYPZED_K - attribute added to the feature along with the code list C_TYP_ZDI 2020-03-01: TYPZED_K - attribute added to the feature along with the code list C_TYP_ZDI 2016-04-01: JMENO - attribute data type changed (VARCHAR2(80) -> VARCHAR2(100)) |
