Feature category: 2. Transport infrastructure
Feature type:
(with ordinal number)
2.22 CABLEWAY, SKI LIFT (LANOVÁ DRÁHA, LYŽAŘSKÝ VLEK)
Feature type code: aq010
Feature definition:

Cableway - a transport device whose wagons are pulled by a rope (overland cableway with a track formed by rails placed on a railway body) or carried by a rope (suspended cableway with a track formed by a rope or a suspended rail) along a steep track.
Ski lift - an individual single-rope orbit with non-detachable hangers for to transport of skiers.
Geometric determination of the feature:
line - cable way axis, ski lift axis
Positional accuracy: mp = 1,5 m
Geometric data source: aerial survey photos, orthophoto, field recognition
Descriptive data source: field recognition, Geonames
A t t r i b u t e s :
Attribute name Data type Attribute subject Attribute values Code list
TYPUSKOM_K
TYPUSKOM_P
VARCHAR2(3)
VARCHAR2(50)
subtype of the transport route section C_PODTYPUSEKUKOM
TYP_LDV_K
TYP_LDV_P
VARCHAR2(3)
VARCHAR2(50)
type of cableway, ski lift C_TYP_LDV
FID_ZBG VARCHAR2(40) unique feature identifier in ZABAGED®
S i z e   r e s t r i c t i o n s :
without restriction
E x a m p l e s :
Příklad

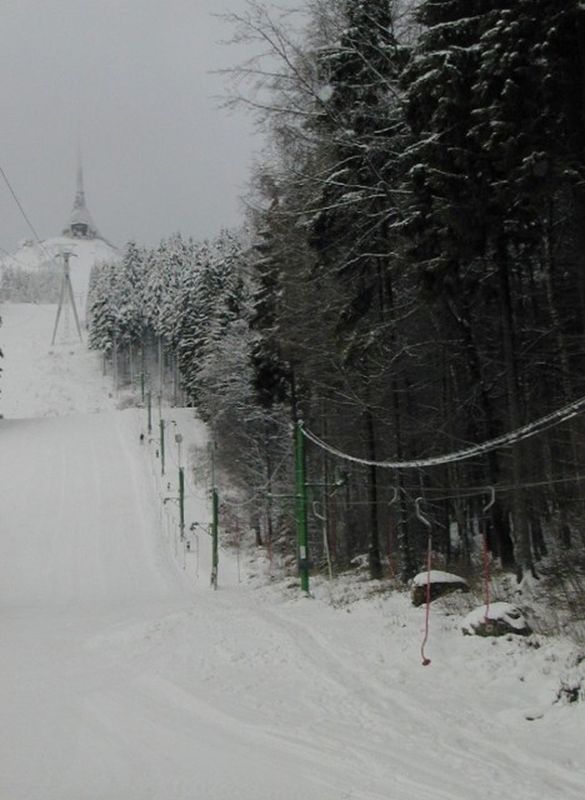

Feature illustration - ski lift (code VLL), section subtype - surface (code PL); photo: ZÚ archives
Příklad
Feature illustration - cabin cable car (code KAB), section subtype - surface (code PL); photo: ZÚ archives
Příklad

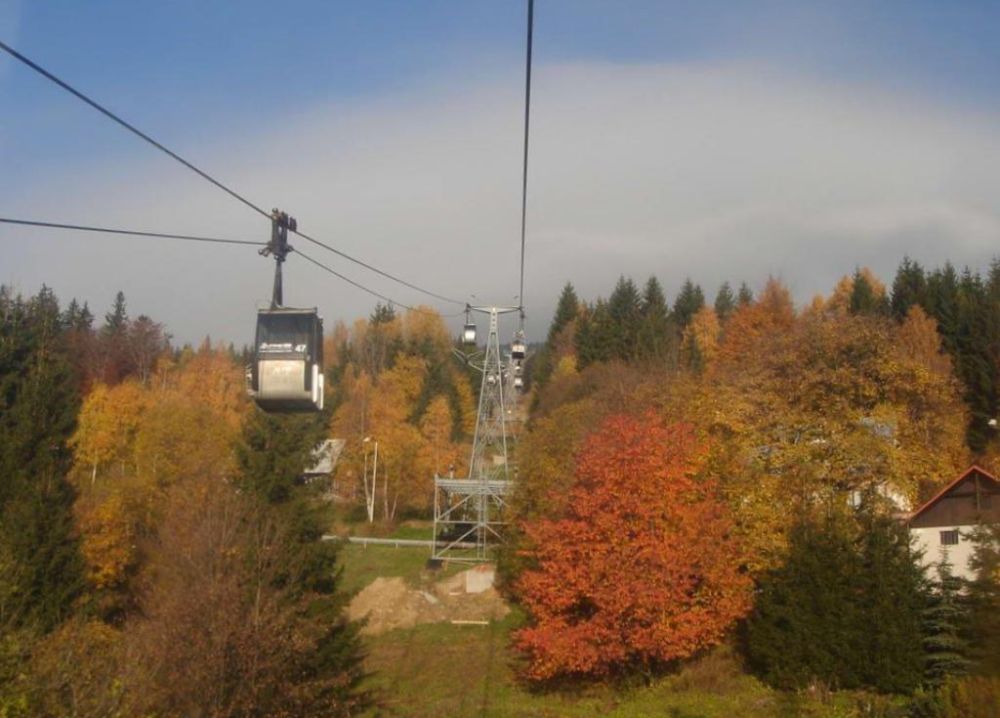

Feature illustration - cabin cable car (code KAB), section subtype - suspension (code V); photo: ZÚ archives
Příklad

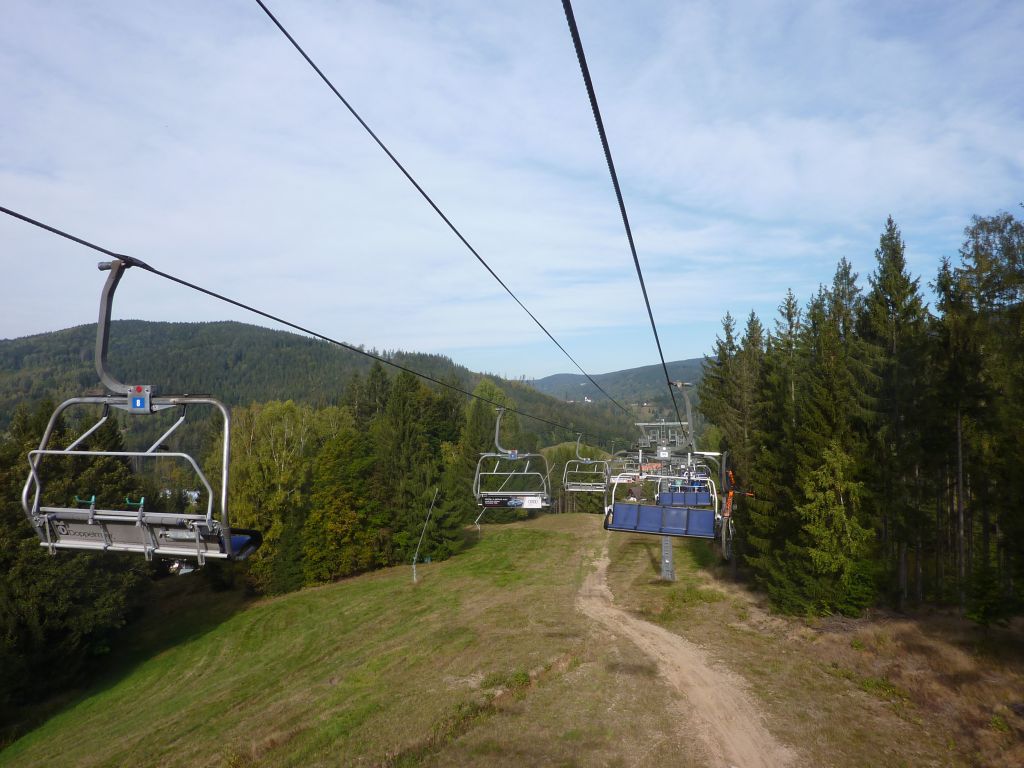

Feature illustration - chair lift (code SED), section subtype - suspension (code V); photo: ZÚ archives
Příklad
Feature illustration - cabin cable car (code KAB), section subtype - underground (code PP) photo: ZÚ archives
F e a t u r e   h i s t o r y :
2020-03-01: PL (surface) - code description in the code list changed C_PODTYPUSEKUKOM (PL (surface cableway) -> PL (surface))
2020-03-01: V (suspension) - code description in the code list changed C_PODTYPUSEKUKOM (V (suspended cableway) -> V (suspension))
2020-03-01: PP (underground) - value added to the code list C_PODTYPUSEKUKOM
2020-03-01: L (ski lift) - value canceled in code list C_PODTYPUSEKUKOM
2020-03-01: TYP_LDV_K - attribute added to the feature along with the code list C_TYP_LDV
2020-03-01: TYP_LDV_P - attribute added to the feature along with the code list C_TYP_LDV
Extended web version updated to : 20.05.2022
