Feature category: 2. Transport infrastructure
Feature type:
(with ordinal number)
2.34 HELIPORT, HELIPAD (HELIPORT)
Feature type code: gb035
Feature definition:

Helicopter landing and take-off area.
Geometric determination of the feature:
perimeter line
Positional accuracy: mp = 1,5 m
Geometric data source:
LP R, AIP, field recognition
Descriptive data source:
LP R, AIP, field recognition
A t t r i b u t e s :
Attribute name Data type Attribute subject Attribute values Code list
KOD
NAZEV
VARCHAR2(6)
VARCHAR2(100)
ICAO code and name of the heliport from the official list according to the AIP or specified in the Z C_HELIPORT
UPRESHEL VARCHAR2(150) specification of the heliport
TYPHEL_K
TYPHEL_P
VARCHAR2(11)
VARCHAR2(200)
heliport type C_TYPHEL
NADM_VYSKA NUMBER(4,0) elevation in feet
UROVENHEL_K
UROVENHEL_P
VARCHAR2(3)
VARCHAR2(50)
heliport location C_UROVENHEL
SIRKATLOF NUMBER(3,1) TLOF area width in metres
DELKATLOF NUMBER(3,1) TLOF area length in metres
TYPTLOF_K
TYPTLOF_P
VARCHAR2(1)
VARCHAR2(20)
TLOF shape C_TVARLOF
POVRTLOF_K
POVRTLOF_P
VARCHAR2(1)
VARCHAR2(60)
type of the TOLF surface C_TYPPOVRCHU
NOCNI VARCHAR2(1) possibility of night landing C_HELNOCNI
SIRKAFATO NUMBER(3,1) FATO width in metres
DELKAFATO NUMBER(3,1) FATO space length in metres
TYPFATO_K
TYPFATO_P
VARCHAR2(1)
VARCHAR2(20)
shape of the helicopter approach and takeoff space C_TVARLOF
POVRFATO_K
POVRFATO_P
VARCHAR2(1)
VARCHAR2(60)
FATO surface type C_TYPPOVRCHU
FID_ZBG VARCHAR2(40) unique feature identifier in ZABAGED
S i z e r e s t r i c t i o n s :
without restriction
E x a m p l e s :
Pklad

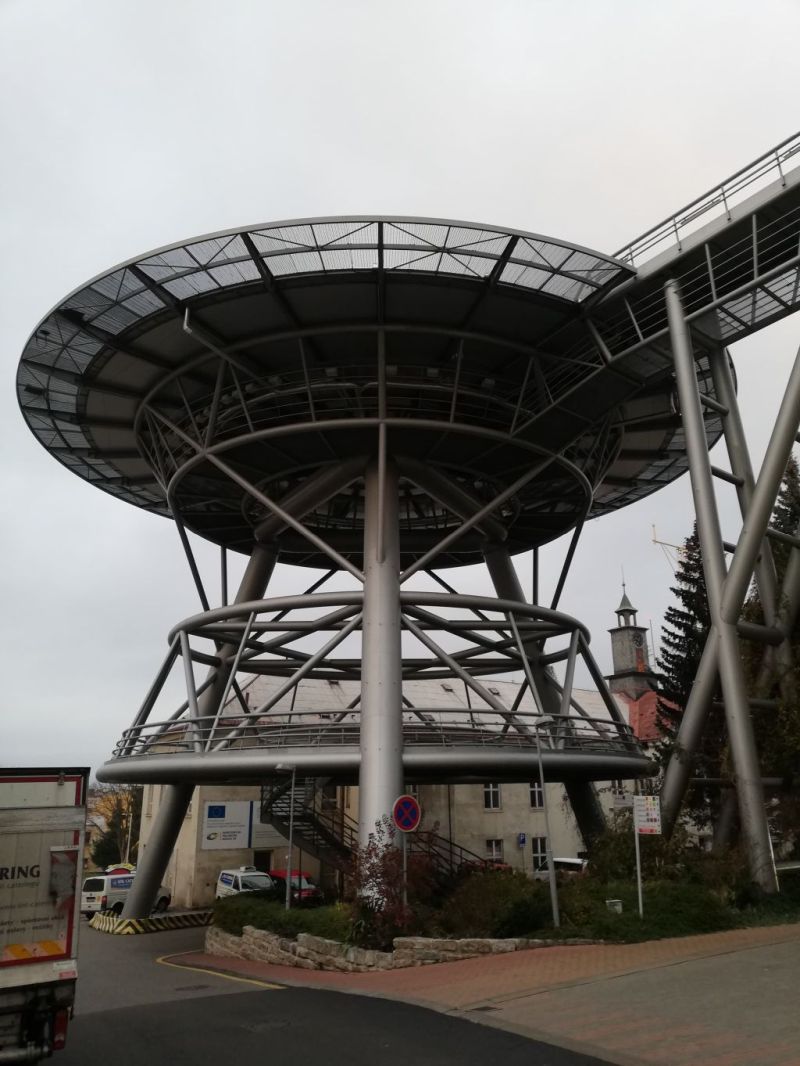

Feature illustration; photo: Z archives
Pklad
Feature illustration; photo: Z archives
Pklad
Feature illustration; Zdroj: ortofoto Z
F e a t u r e h i s t o r y :
2020-03-01: UROVENHEL_K - attribute added to the feature along with the code list C_UROVENHEL
2020-03-01: UROVENHEL_P - attribute added to the feature along with the code list C_UROVENHEL
2020-03-01: POVRTLOF_K - attribute added to the feature along with the code list C_TYPPOVRCHU
2020-03-01: POVRTLOF_P - attribute added to the feature along with the code list C_TYPPOVRCHU
2020-03-01: SIRKAFATO - attribute added to the feature
2020-03-01: DELKAFATO - attribute added to the feature
2020-03-01: TYPFATO_K - attribute added to the feature
2020-03-01: TYPFATO_P - attribute added to the feature
2020-03-01: POVRFATO_K - attribute added to the feature along with the code list C_TYPPOVRCHU
2020-03-01: POVRFATO_P - attribute added to the feature along with the code list C_TYPPOVRCHU
2020-03-01: ZPEVTLOF_K - attribute canceled at the feature
2020-03-01: ZPEVTLOF_P - attribute canceled at the feature
2020-03-01: VYVYSENI - attribute canceled at the feature
2020-03-01: C_HELNOCNI - code list changed in attribute NOCNI C_HELNOCNI (C_ANONE -> C_HELNOCNI)
2018-03-01: KOD_ICAO - attribute added to the feature along with the code list C_HELIPORT
2018-03-01: UPRESHEL - attribute added to the feature
