Feature category: 2. Transport infrastructure
Feature type:
(with ordinal number)
2.18 RAILWAY SIDING (ŽELEZNIČNÍ VLEČKA)
Feature type code: an050
Feature definition:

A railway which serves primarily the needs of a particular enterprise and runs into a continuous railway network either directly or through another siding and has the same track gauge.
Geometric determination of the feature: line - axis of railway siding
Positional accuracy: mp = 0,5 m
Geometric data source: aerial survey photos, orthophoto, field recognition
Descriptive data source:
Správa železnic, s. o., field recognition, Geonames
A t t r i b u t e s :
Attribute name Data type Attribute subject Attribute values Code list
KOD_ZELEZ VARCHAR2(6) designation of the track and definition section of the siding
xxxxyy
xxxx ... designation of railway track section
yy ... designation of railway definition section
x,y ...alpha-numerical designation
TYPROZCH_K
TYPROZCH_P
VARCHAR2(3)
VARCHAR2(50)
track gauge C_TYPROZCHODU
TYPTRATI_K
TYPTRATI_P
VARCHAR2(3)
VARCHAR2(50)
railway electrification C_TYPTRATI
POCETKOLEJ NUMBER(2,0) number of tracks
xx
xx ... number of tracks
JMENO VARCHAR2(100) name transferred from Geonames
FID_ZBG VARCHAR2(40) unique feature identifier in ZABAGED®
S i z e   r e s t r i c t i o n s :
without restriction
E x a m p l e s :
Příklad

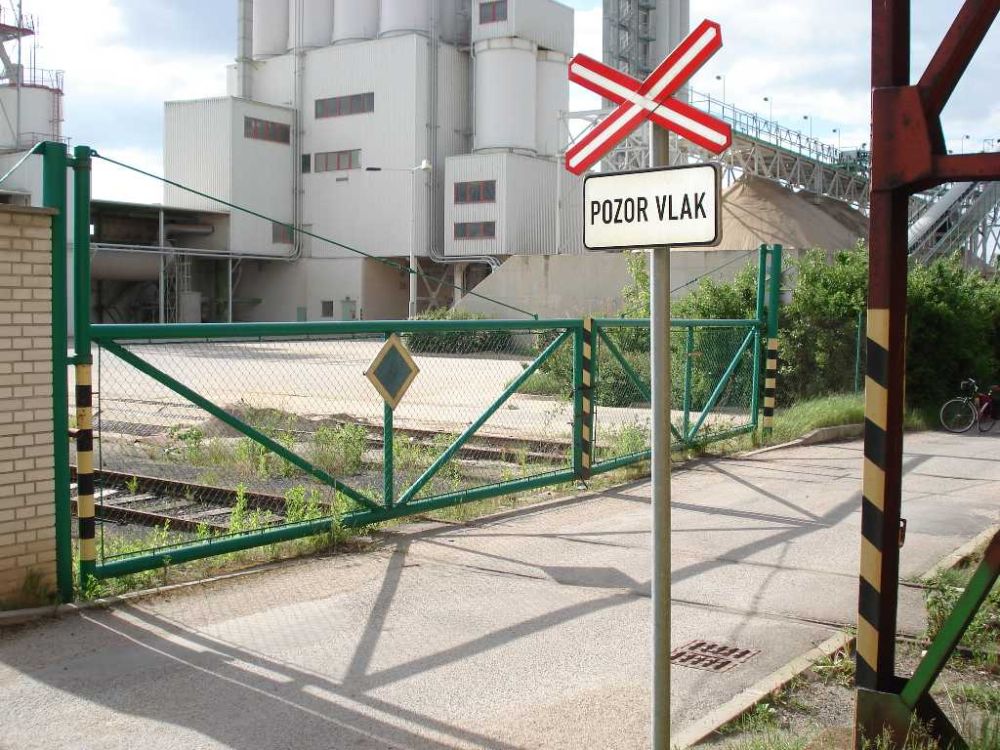

Feature illustration; photo: ZÚ archives
Příklad
Feature illustration; photo: ZÚ archives
Příklad
Feature illustration - narrow track gauge (code 004); photo: ZÚ archives
F e a t u r e   h i s t o r y :
2016-04-01: JMENO - attribute data type changed (VARCHAR2(80) -> VARCHAR2(100))
