| Feature category: | 1. Settlement, economic and cultural features |
| Feature type: (with ordinal number) |
1.10 FACTORY CHIMNEY, SMOKESTACK (TOVÁRNÍ KOMÍN) |
| Feature type code: | af010 |
|
Feature definition: High-rise structure (separate or superstructure on a building), usually of circular cross-section. It is used to remove and disperse exhaust gases, gases and vapours into the air. |
| Geometric determination of the feature: | point |
| Positional accuracy: | mp = 2,0 m |
| Geometric data source: | aerial survey photos, orthophoto, field recognition |
| Descriptive data source: | Geonames, VGHMÚř, ČRa |
| A t t r i b u t e s : |
| Attribute name | Data type | Attribute subject | Attribute values | Code list |
| VYSKA_OBJ | NUMBER(4,0) | feature height in metres | ||
| ZDROJVYS_K
ZDROJVYS_P |
VARCHAR2(1)
VARCHAR2(40) |
the source of the feature height | C_ZDROJ_VYSKY | |
| JMENO | VARCHAR2(100) | name transferred from Geonames | ||
| FID_ZBG | VARCHAR2(40) | unique feature identifier in ZABAGED® |
| S i z e r e s t r i c t i o n s : |
| without restriction |

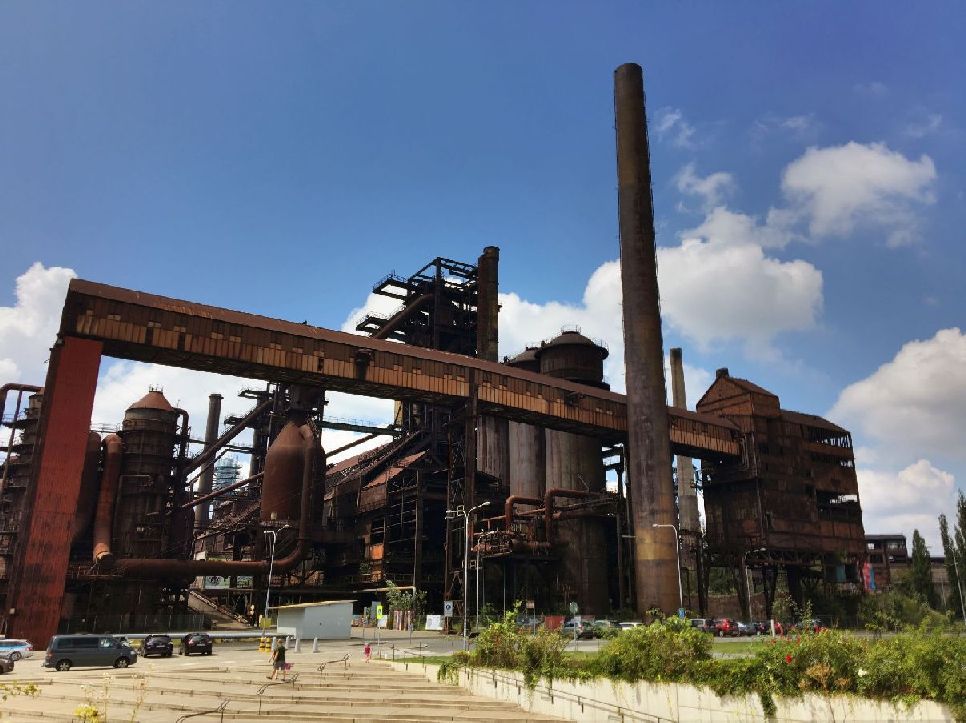

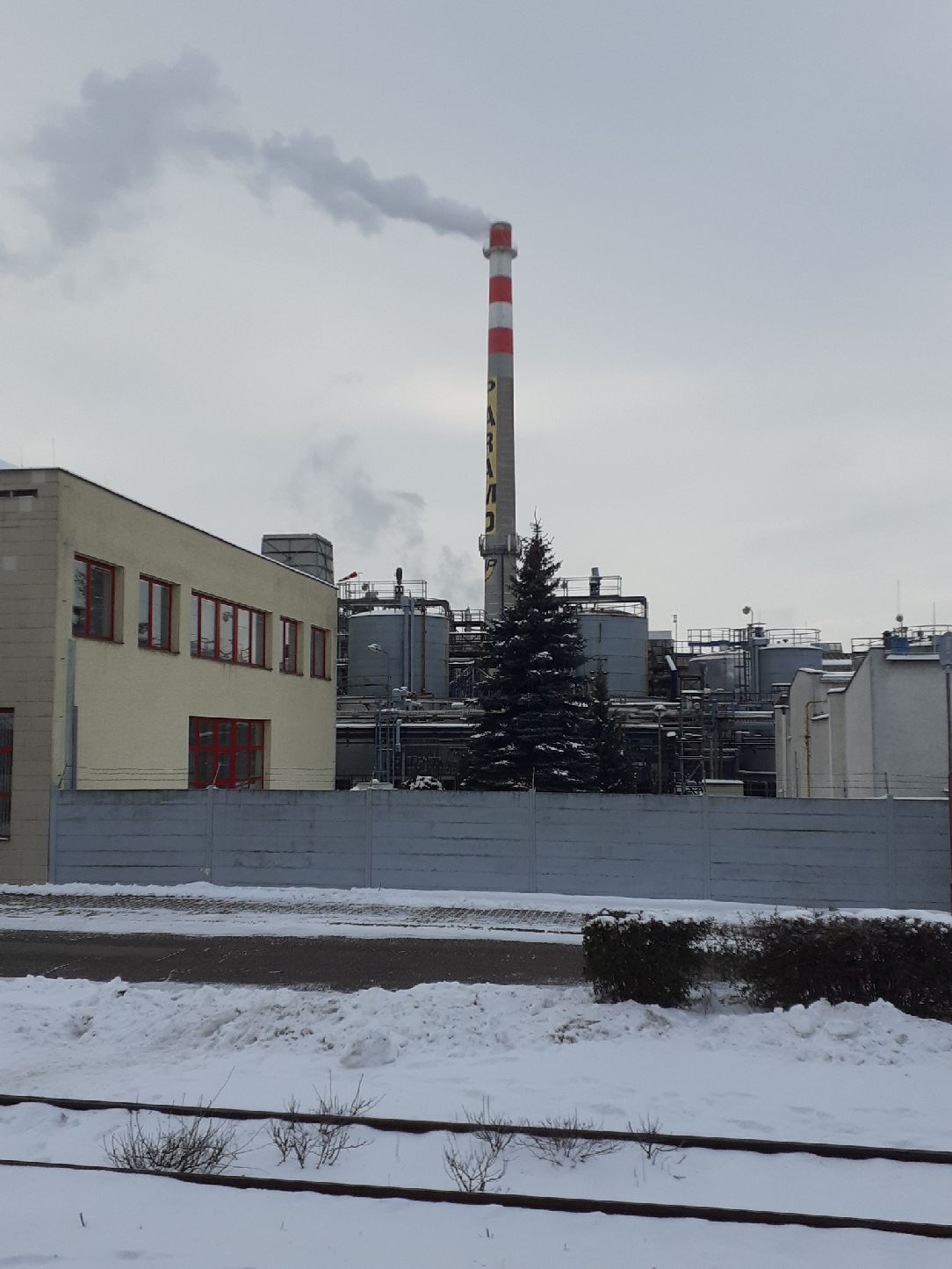

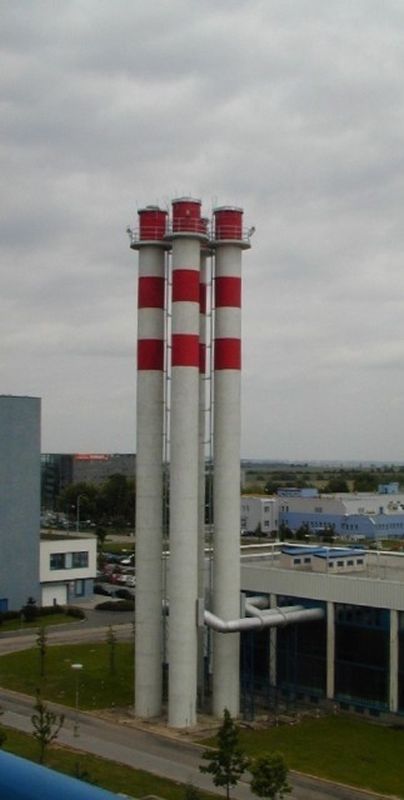

| E x a m p l e s : |
|
| F e a t u r e h i s t o r y : |
|
2018-03-01: VYSKA_OBJ - attribute added to the feature 2018-03-01: ZDROJVYS_K - attribute added to the feature along with the code list C_ZDROJ_VYSKY 2018-03-01: ZDROJVYS_P - attribute added to the feature along with the code list C_ZDROJ_VYSKY 2016-04-01: JMENO - attribute data type changed (VARCHAR2(80) -> VARCHAR2(100)) |
