ZABAGED Feature Catalogue

Feature category:	2. Transport infrastructure
Feature type: (with ordinal number)	2.33 AREA OF RAILWAY STATION, STOP (AREÁL ŽELEZNIČNÍ STANICE, ZASTÁVKY)
Feature type code:	aq125 (NF134)

Feature definition:

Functional and technical background of the railway station or stop delimiting the main station building, technical structures (loading ramps, warehouses) and other buildings and areas belonging to the functional background.

Geometric determination of the feature:	area centroid, (area)
Positional accuracy:	m_p = 5,0 m
Geometric data source:	aerial survey photos, orthophoto, field recognition
Descriptive data source:	Správa železnic, s. o.

A t t r i b u t e s :

Attribute name

Data type

Attribute subject

Attribute values

Code list

ZST_K
ZST_P

VARCHAR2(6)
VARCHAR2(64)

code and name of the transport place according to the Správa železnic, s.o. (Railway Administration) or at other track owners according to the ZÚ

axxxxx
a	...	number (according Správa železnic, s.o.) or letter Z (according ZÚ)
x	...	number

C_KODSTANICE

TYP

VARCHAR2(20)

type of transport place according to the Správa železnic, s.o. (Railway Administration), or track owner


railway station
railway stop

FID_ZBG

VARCHAR2(40)

unique feature identifier in ZABAGED®

S i z e r e s t r i c t i o n s :

without restriction

E x a m p l e s :

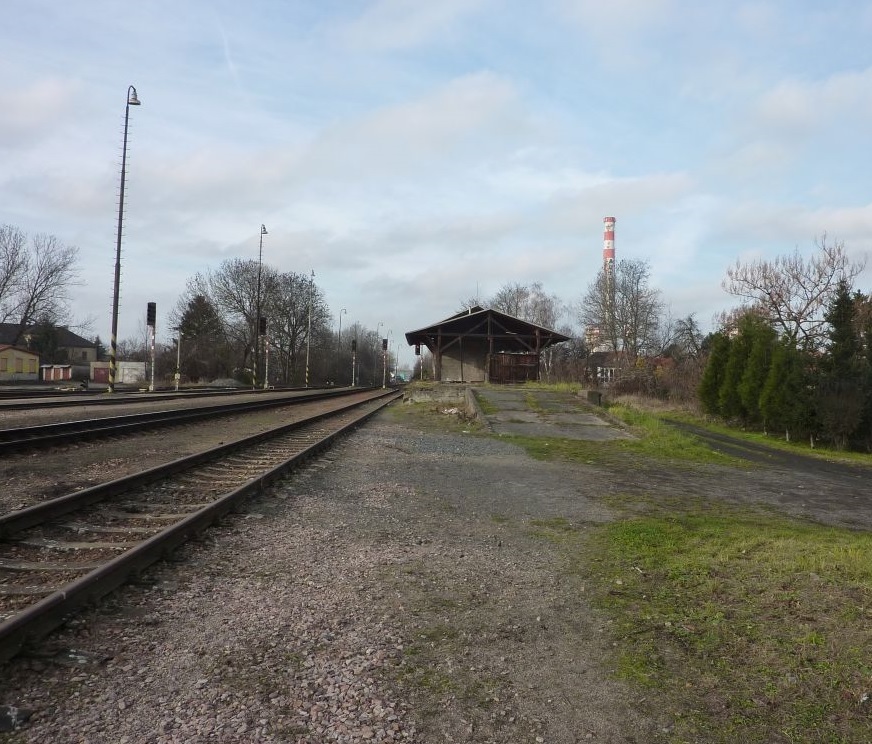

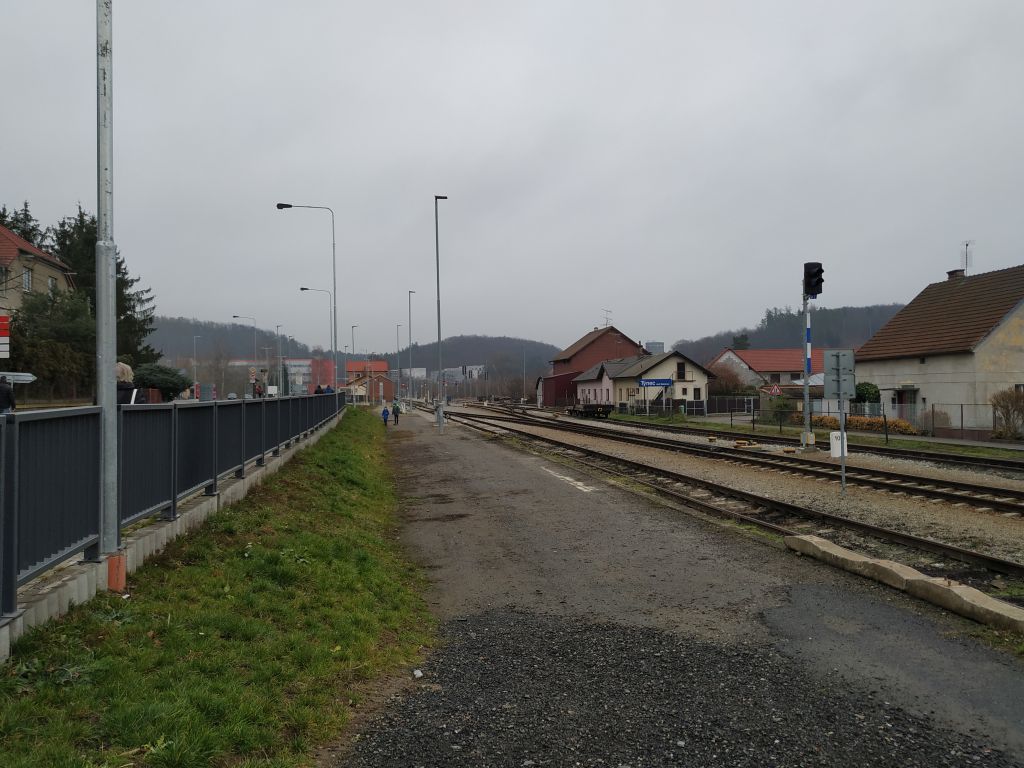

Příklad — Feature illustration; photo: ZÚ archives

F e a t u r e h i s t o r y :
