ZABAGED Feature Catalogue

Feature category:	4. Waters
Feature type: (with ordinal number)	4.10 WATER AREA (VODNÍ PLOCHA)
Feature type code:	bh080 (NF120)

Feature definition:

A water formation created by accumulation of water in an artificial space or natural depression on the earth's surface, in which the outflow of water from a river basin is delayed or slowed down. This includes an artificial or natural water reservoir and a watercourse wider than 4 m.

Geometric determination of the feature:	area centroid, (area)
Positional accuracy:	m_p = 2,0 m
Geometric data source:	aerial survey photos, orthophoto, field recognition, VÚV TGM
Descriptive data source:	field recognition, Geonames

A t t r i b u t e s :

Attribute name	Data type	Attribute subject	Attribute values	Code list
STOJVODA	VARCHAR2(3)	stagnant water		C_ANONE
TYP_VP_K TYP_VP_P	VARCHAR2(3) VARCHAR2(30)	type of water surface		C_TYP_VP
JMENO	VARCHAR2(100)	name transferred from Geonames
FID_ZBG	VARCHAR2(40)	unique feature identifier in ZABAGED®

S i z e r e s t r i c t i o n s :

area ≥ 70 m²

E x a m p l e s :

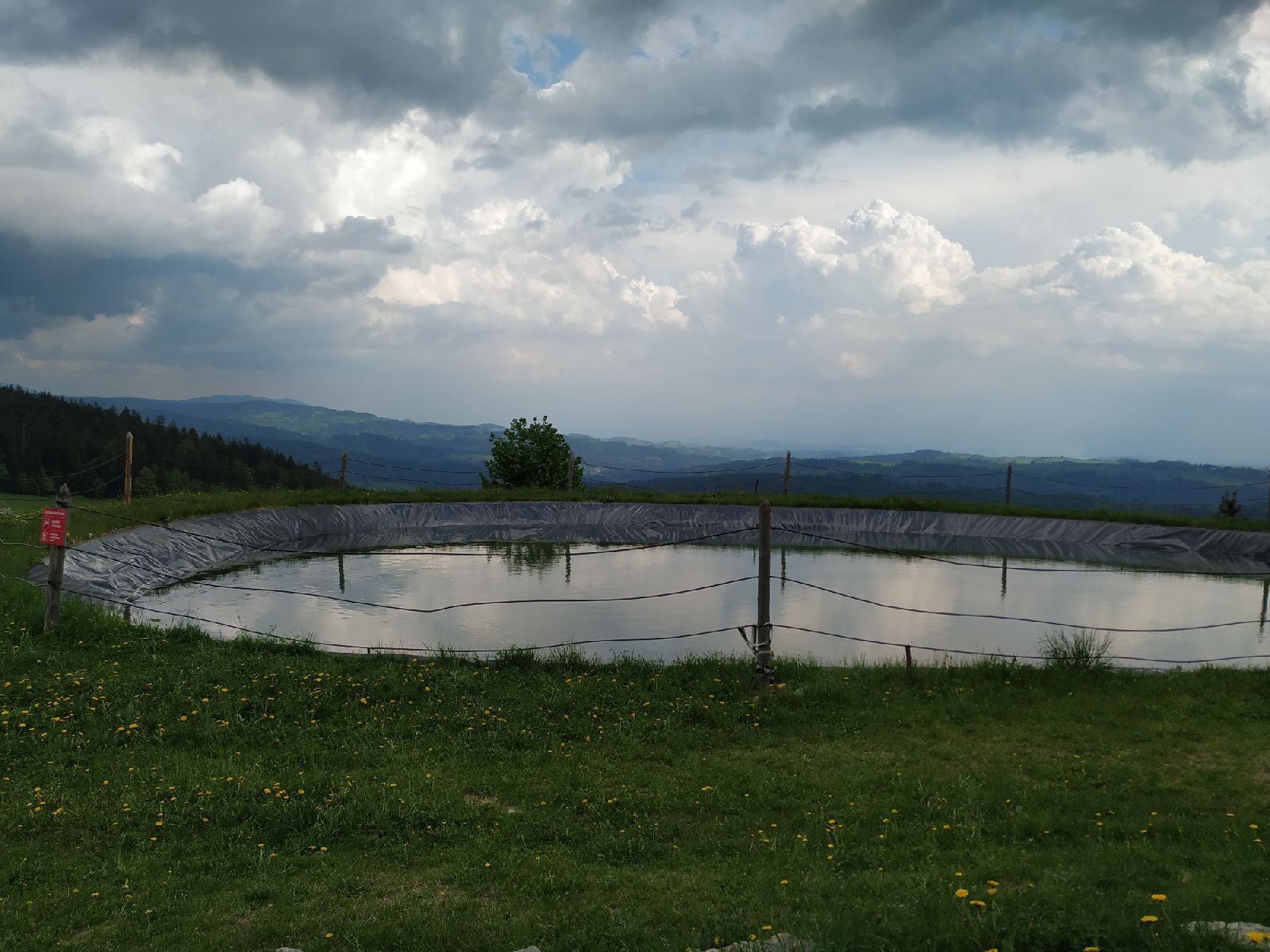

Příklad — Feature illustration - stagnant water = YES (code A); photo: ZÚ archives

F e a t u r e h i s t o r y :

2024-01-01: 10 (unspecified water area) - value canceled in code list C_TYP_VP
2020-03-01: TYP_VP_K - attribute added to the feature along with the code list C_TYP_VP
2020-03-01: TYP_VP_P - attribute added to the feature along with the code list C_TYP_VP
2016-04-01: JMENO - attribute data type changed (VARCHAR2(80) -> VARCHAR2(100))
