Feature category: 7. Terrain relief
Feature type:
(with ordinal number)
7.02 CONTOUR LINE (VRSTEVNICE)
Feature type code: ca010
Feature definition:

A line representing set of points with the same elevation.
Geometric determination of the feature: line
Positional accuracy:
Geometric data source:
DMR 5G
Descriptive data source:
DMR 5G
A t t r i b u t e s :
Attribute name Data type Attribute subject Attribute values Code list
VYSKA NUMBER(5,1) elevation of contour line
TYP_K
TYP_P
VARCHAR2(3)
VARCHAR2(50)
type of contour line C_TYPVRSTEVNICE
ZOBRAZ_K
ZOBRAZ_P
VARCHAR2(1)
VARCHAR2(50)
type of imagery C_ZOBRAZVRSTEVNICE
S i z e   r e s t r i c t i o n s :
without restriction
E x a m p l e s :
Příklad

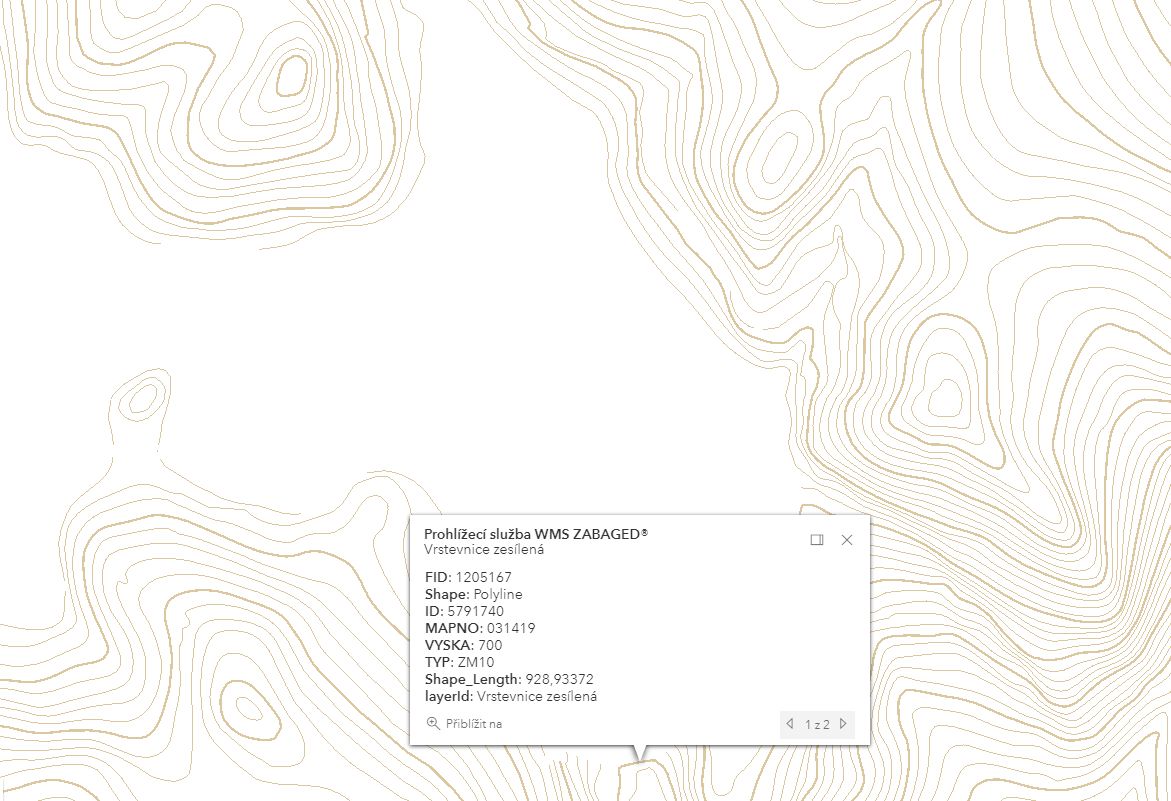

ZABAGED® cartographic representation in the ČÚZK Geoportal - contours are represented by brown line; state to 9/2020
Příklad
ZABAGED® cartographic representation in the ČÚZK Geoportal - contours are represented together with DMR 5G; state to 9/2020
F e a t u r e   h i s t o r y :
2022-04-01: TYP_K - attribute added to the feature along with the code list C_TYPVRSTEVNICE
2022-04-01: TYP_P - attribute added to the feature along with the code list C_TYPVRSTEVNICE
2022-04-01: ZOBRAZ_K - attribute added to the feature along with the code list C_ZOBRAZVRSTEVNICE
2022-04-01: ZOBRAZ_P - attribute added to the feature along with the code list C_ZOBRAZVRSTEVNICE
2016-04-28: TYP - attribute canceled at the feature
2016-04-28: MAPNO - attribute canceled at the feature
2016-04-28: 7.02 CONTOUR LINE (ft_ca010) - feature name and content changed (Basic contour line -> Contour line)
